FCL型弹性联轴器符合日本国标JISB1452，以其结构简单，安装方便，尺寸小，重量轻，免维护，品质可靠，在日本和世界上其它国家中得到客户的广泛使用和赞赏。 FCL型弹性联轴器的特点：吸振性好，可使主动轴的运动平稳地传给被动轴。传动中无轴向推力。拆装方便，只要卸下联轴器螺栓，即可分离主动与被动之间的联结。 如若安装调整后能保持两轴相对位移量在规定的范围内，则联轴器会有满意的使用性能和较长的工作寿命。因此能广泛用于载荷不大，由电动机驱动的各种中、小功率传动轴系中，如减速机、变速器、泵、印染机、卷扬机、起重机、压缩机、输送机、纺织机、卷扬机、球磨机等。
其它同类联轴器产品有： HLL型-带制动轮弹性柱销联轴器|HL型-弹性柱销联轴器|ZL型弹性柱销齿式联轴器|ZLD型圆锥形轴孔弹性柱销齿式联轴|ZLL型-带制动轮弹性柱销齿式联轴
弹性套柱销联轴器的许用相对位移：
径向位移：0.2~0.6mm 角位移：0°30′~1°30′ Summary
Flexible Couplings Model FCLis widely used for its compact designing,easy installation,convenient maintenance,small size and light weight.As long as the relative displacement between shafts is kept within the specified tolerance,B couplings will operate the best function and have a longer working life.Thus it is greatly demanded in medium and minor power transmission systems driven by moters,such as speed reducers,hoists,compressos,conveyers,spinning and weaving machines and ball mills.
Permittable relative displacement:
Radial displacement:0.2~0.6mm
Angle displacement:0°30′~1°30′

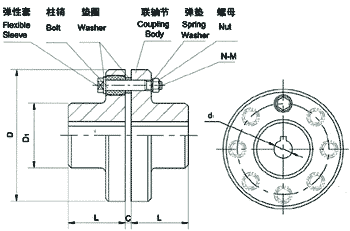

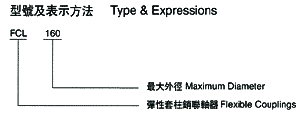

FCL型弹性套柱销联轴器
|
型号
Type
|
许用转矩
Max torque
N.m
|
许用转速
Max speed
r/min
|
D |
D 1 |
d 1 |
L |
C |
n-M |
重量
kg |
|
FCL90 |
4 |
4000 |
90 |
35.5 |
11 |
28 |
3 |
4-M8×50 |
1.7 |
|
FCL100 |
10 |
4000 |
100 |
40 |
11 |
35.5 |
3 |
4-M10×56 |
2.3 |
|
FCL112 |
16 |
4000 |
112 |
45 |
13 |
40 |
3 |
4-M10×56 |
2.8 |
|
FCL125 |
25 |
4000 |
125 |
50 |
13 |
45 |
3 |
4-M12×64 |
4.0 |
|
FCL140 |
50 |
4000 |
140 |
63 |
13 |
50 |
3 |
6-M12×64 |
5.4 |
|
FCL160 |
110 |
4000 |
160 |
80 |
15 |
56 |
3 |
8-M12×64 |
8.0 |
|
FCL180 |
157 |
3500 |
180 |
90 |
15 |
63 |
3 |
8-M12×64 |
10.5 |
|
FCL200 |
245 |
3200 |
200 |
100 |
21 |
71 |
4 |
8-M20×85 |
16.2 |
|
FCL224 |
392 |
2850 |
224 |
112 |
21 |
80 |
4 |
8-M20×85 |
21.3 |
|
FCL220 |
618 |
2550 |
250 |
125 |
25 |
90 |
4 |
8-M24×110 |
31.6 |
|
FCL280 |
980 |
2300 |
280 |
140 |
34 |
100 |
4 |
8-M24×116 |
44.0 |
|
FCL315 |
1568 |
2050 |
315 |
160 |
41 |
112 |
4 |
10-M24×116 |
57.7 |
|
FCL355 |
2450 |
1800 |
355 |
180 |
60 |
125 |
5 |
8-M30×50 |
89.5 |
|
FCL400 |
3920 |
1600 |
400 |
200 |
60 |
125 |
5 |
10-M30×150 |
113 |
|
FCL450 |
6174 |
1400 |
450 |
224 |
65 |
140 |
5 |
12-M30×150 |
145 |
|
FCL560 |
9800 |
1150 |
560 |
250 |
85 |
160 |
5 |
14-M30×150 |
229 |
|
FCL630 |
15680 |
1000 |
630 |
280 |
95 |
180 |
5 |
18-M30×150 |
296 | |
